SYA12K16I

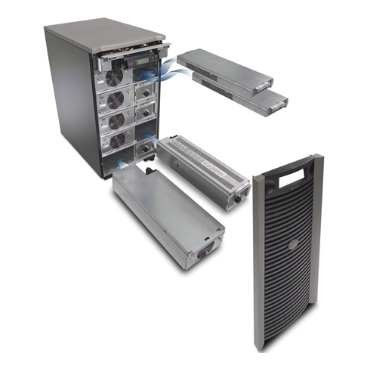

APC Symmetra LX 12kVA scalable to 16kVA N+1 Tower, 220/230/240V

Original price was: $15,972.11.Current price is: $10,018.57.

USD

AED

JPY

EUR

KRW

GBP

RUB

INR

MNT

IRR

THB

AUD

SGD

PHP

LAK

MYR

VND

In stock

SKU： SYA12K16I Categories： UPS Systems, Symmetra UPS

Product Highlights

Description

APC Symmetra LX 12kVA scalable to 16kVA N+1 Tower, 220/230/240V

Specification

Product datasheet
Specifications
APC Symmetra LX 12kVA
scalable to 16kVA N+1 Tower,
220/230/240V or 380/400/415V
SYA12K16I
Overview
Presentation	High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Lead time	Usually in Stock
Main
Main Input Voltage	230 V 400 V 3 phases
Product or component type	Unin terruptible power supply (UPS)
Other Input Voltage	220 V 240 V 380 V 415 V
Main Output Voltage	230 V
Other Output Voltage	220 V 240 V
rated power in W	8400 W
rated power in VA	12000 VA
Output connector type	Hard wire 3-wire (H N + E) 1
Battery type	Lead-acid battery
Provided equipment	CD with software Documentation CD Installation guide User manual Web/SNMP management card
Range of product	Symmetra LX
Batteries & Runtime
Run Time	View Run time Graph 口
Efficiency	View Efficiency Graph 口
Number of battery filled slots	3
Number of battery free slots 1
Battery recharge time	3 h
Additional information	Con figurable for 220 : 230 or 240 nominal output voltage
Battery charger power	861 W rated
Battery life	3…5 year(s)
General
product web sub-family	4kVA power in creme nts
Number of power module free	2
slots
Number of power module filled	3
slots
Redundant	Yes
Physical
Colour	Black Silver
Height	93.7 cm
Width	48.3 cm
Depth	72.6 cm
Net weight	263.64 kg
Mounting location	Front
Mounting preference	No prefere nee
Mounting mode	Not rack-mou ntable
Two post mountable	0
USB compatible	No
Input
Network frequency	45…65 Hz auto-se nsing
Number of input connectors	1 hard wire 3-wire (1P + N + E) 1 hard wire 5-wire (3P + N + E)
Input voltage limits	155.. .276 V 290.. .480 V 3:1
Input harmonic distortion	Less tha n 7 % for full load
Input Power Factor at Full Load	0.98
Output
Maximum configurable power in W	11200W
Harmonic distortion	Less tha n 5 % at full load
Output frequency	47…63 Hz sync to mains 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Crest factor	Up to 5 : 1
UPS type	Double con versi on on li ne
Wave type	Si ne wave
Bypass type	In ter nal bypass (automatic and man ual)
Maximum output current	55 A
Maximum configurable power in VA	16000 VA
Conformance
Product certifications	C-Tick CE GOST VDE
Standards	EN 50091-1 EN 50091-2 EN 55022 class A EN 55024 EN 60950 IEC 60950
Environmental
Ambient air temperature for operation	0…40 °C
Relative humidity	0…95 %
Operating altitude	0…10000 ft
Ambient air temperature for storage	-15…45 °C
Storage Relative Humidity	0…95 %
Storage altitude	0.0000000000…4572.0000000000 m
Acoustic level	62 dBA
Heat dissipation	3707 Btu/h
Communications & Management
Free slots	1
Preinstalled device	Network man ageme nt card 2 with en vir onmen tal mon itor ing
control panel	Multifu nctio n LCD status an d con trol con sole
Alarm	Audible and visible alarms : prioritized by severity
Emergency power off	Yes
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	118.1 cm
Package 1 Width	59.9 cm
Package 1 Length	99.7 cm
Package 1 Weight	287.27 kg
Contractual warranty
Warranty	2 years repair or replace
