-10%

SPRM6KL

APC BY SCHNEIDER ELECTRIC | SPRM6KL

Original price was: $1,674.10.Current price is: $1,512.91.

USD

AED

JPY

EUR

KRW

GBP

RUB

INR

MNT

IRR

THB

AUD

SGD

PHP

LAK

MYR

VND

In stock

SKU： APC BY SCHNEIDER ELECTRIC | SPRM6KL Categories： UPS Systems, Schneider SP

Product Highlights

Description

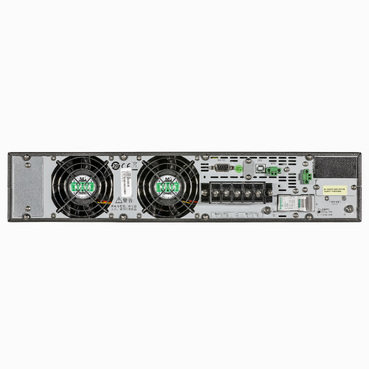

APC BY SCHNEIDER ELECTRIC | SPRM6KL

Specification

Specifications
SP Series UPS, Rack-mounted 6KVA Long Duration
SPRM6KL
	Summary
Lead Time Main Information	Usually in stock
Main Input Voltage	220 volts
Product Type	Uninterruptible Power Supply (UPS)
Other Input Voltage	230 V 240 V
Main Output Voltage	220 V
Other Output Voltage	230 V 240 V
Rated Power [W]	6000 W
Rated Power [VA]	6000 VA
Output Connector Type	Hardwired 3-wire (H N + E) 1
Rack Unit Number	2U
Battery Type	External Battery System
Accessories	Basic UPS Signaling RS-232 cable Software CD 1 DC cable Rack-mounting bracket User manual USB cable
Product Series	Easy UPS On-Line
Battery and Run Time
Other Parameters	Can be set to 220, 230, or 240 output voltage
Power Supply Voltage	240V
Auto-Detectable, Expandable Delay Time	0
Pre-installed Battery	0
Empty Battery Slot	0
Battery Charging Voltage (Watts)	1170 W rated
Universal
Number of Filled Power Module Slots	0
Number of Empty Power Module Slots	0
Redundant	No
Physical Parameters
Color	Black
Height	8.8 cm
Width	43.8 cm
Depth	61.5 cm
Net Weight	14 kg
Installation Preference	No preference
Installation Type	Rack-mounted with kit
Installable on Double Posts	0
USB Compatible	Yes
Input
Input Voltage Limits	110.. .300 V half load 176.. .300 V full load
Input Connector Quantity	1 hardwired 3-wire (1PH + N + G)
Network Frequency	40…70 Hz auto-sensing
Output
Bypass Type	Internal bypass (automatic or manual)
Peak Factor	3:01
Maximum Configurable Power (Volt-Amps)	6000 VA
Maximum Configurable Power (Watts)	6000 W
Topology	Double conversion online
Waveform Type	Sine wave
Power	94% (full load)
Output Frequency (Synchronized with Main Frequency)	50/60 Hz +/- 3 Hz synchronized with main frequency
Compatibility
Product Certification	CE
Environment
Sound Level	55 dBA
Operating Altitude	0…3000 m
Operating Temperature	0…40 °C
Storage Ambient Temperature	-15…60 °C
Storage Height	0…15000 m
IP Protection Class	IP20
Relative Humidity	0…95% non-condensing
Storage Relative Humidity	0…95% non-condensing
Communication and Management
Alarm	Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Emergency Shutdown	Yes
Idle Slot	1
Alarm Function	Multifunction LCD display status management console.
Surge Protection and Filtering
Surge Suppression Energy	600 J
Packaging Unit
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	24 cm
Package 1 Width	76 cm
Package 1 Length	60 cm
Package 1 Weight	18 kg
SCC14	1.07313E+13
Contract Warranty
Warranty Certificate	2 years repair or replacement
