SPRM2K

APC BY SCHNEIDER ELECTRIC | SPRM2K

Original price was: $899.00.Current price is: $782.95.

USD

AED

JPY

EUR

KRW

GBP

RUB

INR

MNT

IRR

THB

AUD

SGD

PHP

LAK

MYR

VND

In stock

SKU： SPRM2K Categories： UPS Systems, Schneider SP

Product Highlights

Description

APC BY SCHNEIDER ELECTRIC | SPRM2K

Specification

Specifications

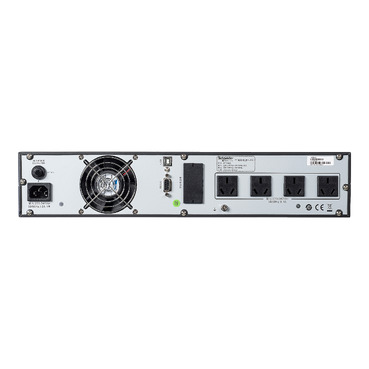

SP Series UPS, Rack Mount 2KVA Standard Model
SPRM2K
Summary
Lead Time Main Information	Usually delivered within 6 weeks
Main Input Voltage	220 volts
Product Type	Uninterruptible Power Supply (UPS)
Other Input Voltage	230 V 240 V
Main Output Voltage	220 V 230 V 240 V
Other Output Voltage	230 V 240 V
Rated Power [W]	1600 W
Rated Power [VA]	2000 VA
Input Connection Type	CH1-10P China
Output Connection Type	4 Chinese outlet
Rack Units	2U
Cable Length	1.5 m
Number of Cables	1
Battery Type	Lead-acid battery
Included Accessories	Basic UPS Signaling RS-232 cable Software CD Power cord Rack-mounting bracket User manual USB cable 1 DC cable
Product Series	Easy UPS Online
Battery and Runtime
Other Parameters	Can be set to 220, 230, or 240 output voltage
Power Supply Voltage	48V
Auto-Detectable, Expandable Delay Time	0
Pre-installed Battery	0
Empty Battery Slot	0
Typical Charge Time	4 hours
Battery Life	3…5 years
Battery Charging Voltage (Watts)	60 W rated
Universal
Maximum Run Time	4 minutes
Redundant	No
Physical Parameters
Color	Black
Height	8.8 cm
Width	43.8 cm
Depth	46.2 cm
Net Weight	18.2 kg
Installation Preference	No preference
Installation Type	Rack-mounted with kit
Installable on Double Posts	0
USB Compatible	Yes
Input
Input Voltage Limits	110.. .300 V half load 160.. .280 V full load
Network Frequency	40…70 Hz auto-sensing
Output
Bypass Type	Internal bypass (automatic or manual)
Crest Factor	3:01
Maximum Configurable Power (VA)	2000 VA
Maximum Configurable Power (Watts)	1600 W
Topology	Double conversion online
Waveform Type	Sine wave
Power	88 % (full load)
Output Frequency (Synchronized with Main Frequency)	50/60 Hz +/- 3 Hz synchronized with main frequency
Compatibility
Product Certification	CE
Environment
Sound Level	50 dBA
Operating Altitude	0…3000 m
Operating Temperature	0…40 °C
Storage Ambient Temperature	-20…50 °C
Storage Height	0…15000 m
IP Protection Class	IP20
Relative Humidity	0…95 % non-condensing
Storage Relative Humidity	0…95 % non-condensing
Communication and Management
Alarm	Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Idle Slot	1
Alarm Function	Multifunction LCD display status management console.
Surge Protection and Filtering
Surge Suppression Energy	600 J
Packaging Unit
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	21.8 cm
Package 1 Width	70 cm
Package 1 Length	55 cm
Package 1 Weight	20.7 kg
SCC14	1.07313E+13
Contract Warranty
Warranty Certificate	2 years repair or replacement
