-10%

AP8958

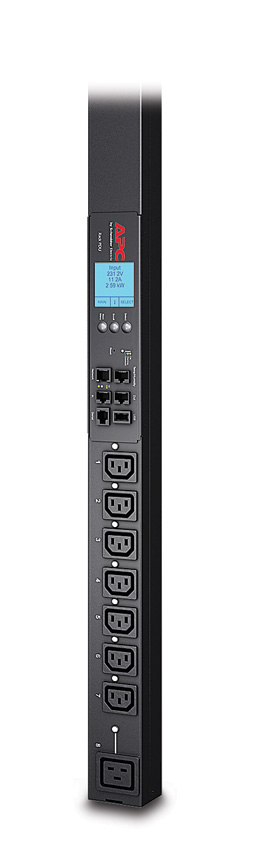

APC Switched Rack AP8958 8-Outlets PDU（AP8958）

Original price was: $776.15.Current price is: $697.48.

USD

AED

JPY

EUR

KRW

GBP

RUB

INR

MNT

IRR

THB

AUD

SGD

PHP

LAK

MYR

VND

In stock

SKU： AP8958 Categories： Rack PDU

Product Highlights

Description

APC Switched Rack AP8958 8-Outlets PDU（AP8958）

Specification

Product datasheet
AP8958
Rack PDU 2G, Switched, ZeroU, 20A/208V,16A/230V, (7) C13 & (1) C19
AP8958 has not been replaced. Please contact your customer care centre for more information.
Overview
Model Name	Rack PDU 2G, Switched, ZeroU, 20A208V, 16A230V, (7) C13 & ⑴ C19
Includes	Installation guide , Rack Mounting brackets , Safety guide , Serial configuration cable
Standard Lead Time	Usually in Stock
Product Distribution
Output
Nominal Output Voltage	100V , 200V , 208V , 230V
Maximum Total Current Draw per Phase	16 A
Output Connections	⑴ IEC 320 C19 (Battery Backup) , (7) IEC 320 C13 (Battery Backup)
Overload Protection	No
Input
Nominal Input Voltage	200V 208V 230V
Input Frequency	50/60 Hz
Regulatory Derated Input Current (North America)	16 A
Input Connections	IEC-320 C20
Acceptable Input Voltage	100-240 VAC
Maximum Input Current per phase	20 A
Load Capacity	3300 VA
Physical
Net Weight	3.23 kg
Maximum Height	988.0 mm
Maximum Width	56.0 mm
Maximum Depth	46.0 mm
Shipping Weight	4.77 kg
Shipping Height	1125.0 mm
Shipping Width	165.0 mm
Shipping Depth	114.0 mm
Color	Black
Environmental
Operating Environment	-5 – 45 °C
Operating Relative Humidity	5 – 95 %
Operating Elevation	0-3000 meters
Storage Temperature	-25 – 65 °C
Storage Relative Humidity	5 – 95 %
Storage Elevation	0-15000 meters
Conformance
Approvals	EN 55022 Class A , EN 55024 , EN 61000-3-2 , EN 61000-3-3 , FCC Part 15 Class A , ICES-003 , PSE , UL Listed , VCCI Class A , VDE , cUL Listed
Standard warranty	2 years repair or replace
Sustainable Offer Status
RoHS	Compliant
REACH	REACH: Con tai ns No SVHCs
Battery Directive	Compliant
