-22%

AP7921B

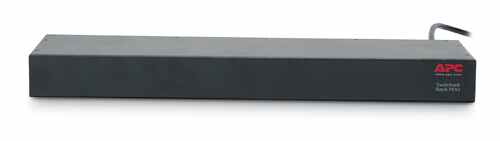

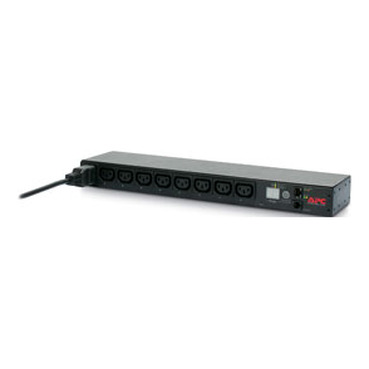

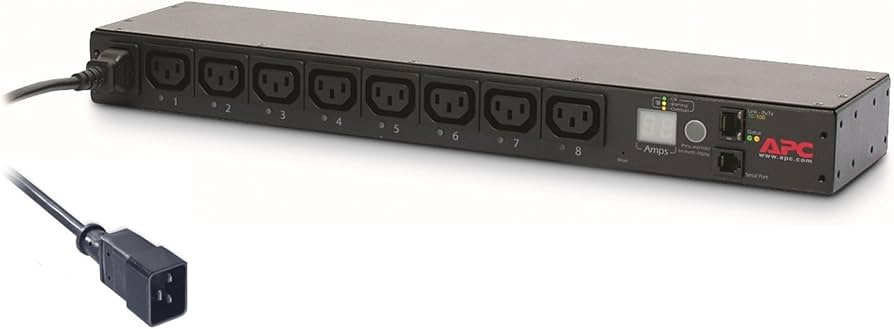

AP7921B APC by Schneider Electric Rack PDU（AP7921B）

Original price was: $750.00.Current price is: $586.36.

USD

AED

JPY

EUR

KRW

GBP

RUB

INR

MNT

IRR

THB

AUD

SGD

PHP

LAK

MYR

VND

In stock

SKU： AP7921B Categories： Rack PDU

Product Highlights

AP7921B APC by Schneider Electric Rack PDU（AP7921B）

Product data sheet
Characteristics
AP7921B
Rack PDU, Switched, 1U, 16A, 208/230V, (8)C13
Overview
Model Name	Rack PDU, Switched, 1U, 16A, 208/230V, (8)C13
Includes	Installation guide , Rack Mounting brackets , User Manual
Standard Lead Time	Usually in Stock
Output
Nominal Output Voltage	208V , 230V
Maximum Total Current Draw per	16 A
Phase
Output Connections	(8) IEC 320 C13 (Battery Backup)
Always on Outlets	0
Input
Nominal Input Voltage	200V , 208V , 230V
Input Frequency	50/60 Hz
Regulatory Derated Input Current	16 A
(North America)
Input Connections	IEC-320 C20
Cord Length	2.5 meters
Number of Power Cords	1
Acceptable Input Voltage	200-240 VAC
Maximum Line Current per phase	0 A
Maximum Input Current per phase	20 A
Load Capacity	3680 VA
Physical
Net Weight	2.27 kg
Maximum Height	44.0 mm
Maximum Width	445.0 mm
Maximum Depth	108.0 mm
Shipping Weight	3.45 kg
Shipping Height	70.0 mm
Shipping Width	470.0 mm
Shipping Depth	343.0 mm
Color	Black
Environmental
Operating Environment	0 – 45 °C
Operating Relative Humidity	0 – 95 %
Operating Elevation	0-3000 meters
Storage Temperature	-25 – 65 °C
Storage Relative Humidity	0 – 95 %
Storage Elevation	0-15000 meters
Conformance
Approvals	CE , CSA , EN 55022 Class A , EN 55024 , EN 61000-3-2 , EN 61000-3-3 , GOST , IRAM , MIC , UL 60950 , UL Listed , VCCI , VDE , cUL Listed
Standard warranty	2 years repair or replace
Sustainable Offer Status
RoHS	Compliant
REACH	REACH: Con tai ns No SVHCs
Battery Directive	Compliant
Battery Notes	Battery Notes
