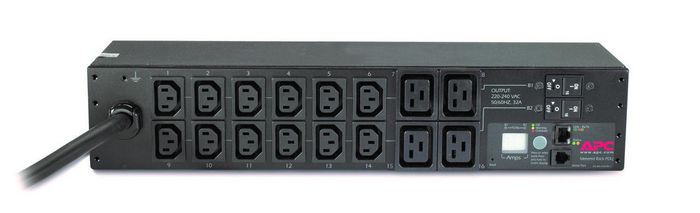

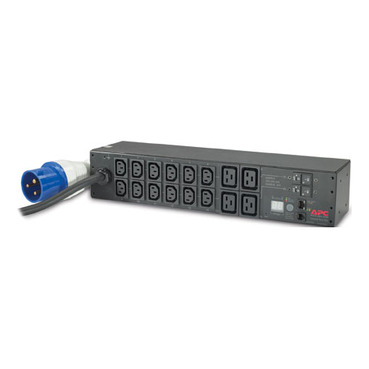

AP7822B APC by Schneider Electric Rack PDU（AP7822B）

Original price was: $800.00.Current price is: $706.88.

USD

AED

JPY

EUR

KRW

GBP

RUB

INR

MNT

IRR

THB

AUD

SGD

PHP

LAK

MYR

VND

In stock

SKU： AP7822B Categories： Rack PDU

Product Highlights

AP7822B APC by Schneider Electric Rack PDU（AP7822B）

Product data sheet
AP7822B	Rack PDU, Metered, 2U, 32A, 230V, (12) C13 &(4) C19
Characteristics
Overview
Model Name	Rack PDU, Metered, 2U, 32A, 230V, (12) C13 & (4) C19
Includes	Cord retention bracket(s) , Installation guide , Rack Mounting brackets , User Manual
Standard Lead Time	Usually in Stock
Output
Nominal Output Voltage	230V
Maximum Total Current Draw per Phase	32 A
Output Connections	(12) IEC 320 C13 (Battery Backup) , (4) IEC 320 C19 (Battery Backup)
Overload Protection	Yes
Input
Nominal Input Voltage	200V , 208V , 230V
Input Frequency	50/60 Hz
Input Connections	IEC 309 32A 2P+E
Cord Length	3.66 meters
Number of Power Cords	1
Maximum Input Current per phase	32 A
Physical
Net Weight	3.36 kg
Maximum Height	88.0 mm
Maximum Width	444.0 mm
Maximum Depth	112.0 mm
Shipping Weight	5.42 kg
Shipping Height	140.0 mm
Shipping Width	508.0 mm
Shipping Depth	368.0 mm
Environmental
Operating Environment	-5 – 45 °C
Operating Relative Humidity	5 – 95 %
Operating Elevation	0-3000 meters
Storage Temperature	-25 – 65 °C
Storage Relative Humidity	5 – 95 %
Storage Elevation	0-15000 meters
Conformance
Approvals	C-tick , CE , FCC Part 15 Class A , GOST , ICES-003 , IRAM , MIC , VCCI , VDE
Standard warranty	2 years repair or replace
Sustainable Offer Status
RoHS	Compliant
REACH	REACH: Con tai ns No SVHCs
Battery Directive	Compliant
