AP7554

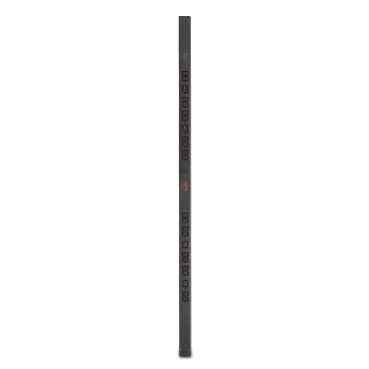

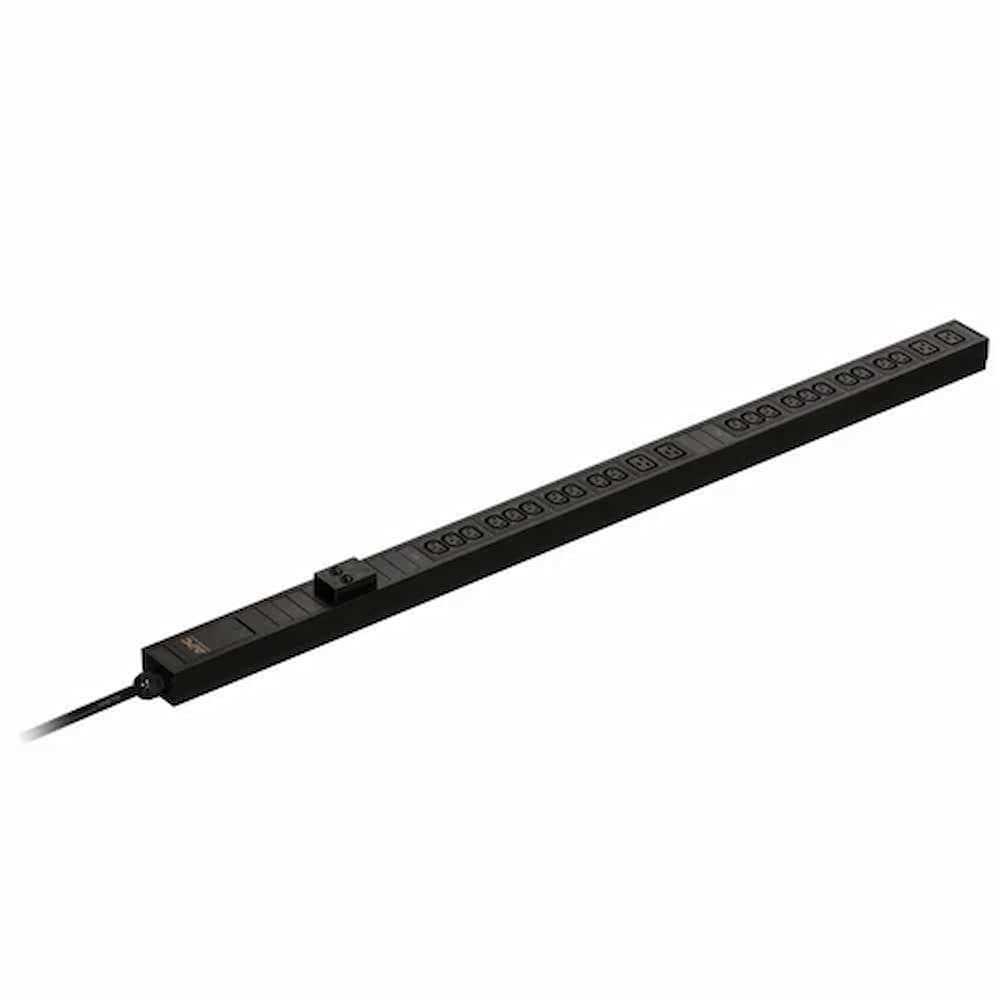

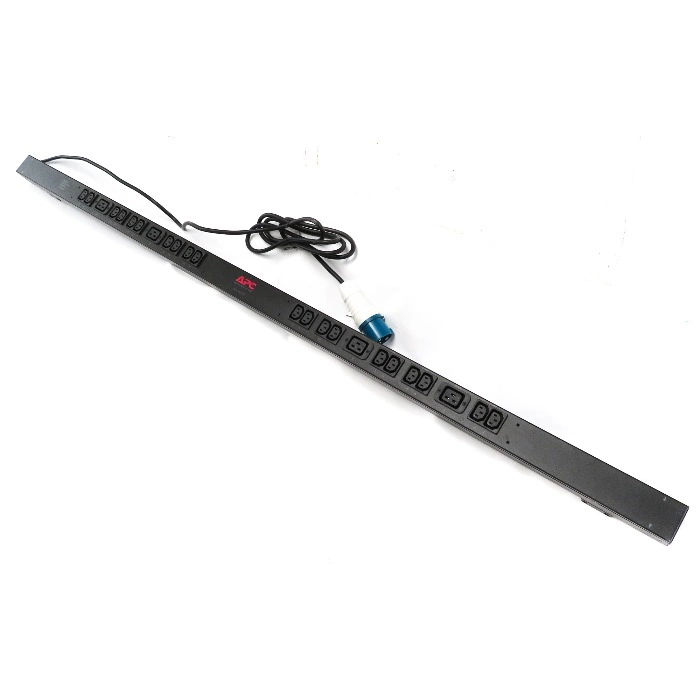

APC AP7554 16A230V RACK PDU(AP7554)

Original price was: $450.00.Current price is: $280.36.

USD

AED

JPY

EUR

KRW

GBP

RUB

INR

MNT

IRR

THB

AUD

SGD

PHP

LAK

MYR

VND

In stock

SKU： AP7554 Categories： Rack PDU

Product Highlights

APC AP7554 16A230V RACK PDU(AP7554)

Product data sheet
Characteristics
AP7554	Rack PDU,Basic,ZeroU,16A,230V,(20)C13 &(4)C19; IEC309, 10 ft Cord
Overview
Model Name	Rack PDU,Basic,ZeroU,16A,230V,(20)C13 &⑷C19; IEC309, 10 ft Cord
Includes	Installation guide , Rack Mounting brackets , Toolless Mounting Kit
Standard Lead Time	Usually in Stock
Output
Nominal Output Voltage	230V
Maximum Total Current Draw per Phase	16 A
Output Connections	(20) IEC 320 C13 (Battery Backup) , (4) IEC 320 C19 (Battery Backup)
Input
Nominal Input Voltage	200V , 208V , 230V
Input Frequency	47 -63 Hz
Input Connections	IEC 309 16A
Cord Length	3.05 meters
Number of Power Cords	1
Maximum Input Current per phase	16 A
Load Capacity	3680 VA
Physical
Net Weight	5.57 kg
Maximum Height	1619.0 mm
Maximum Width	56.0 mm
Maximum Depth	44.0 mm
Shipping Weight	6.48 kg
Shipping Height	2134.0 mm
Shipping Width	152.0 mm
Shipping Depth	127.0 mm
Color	Black
Environmental
Operating Environment	-5 – 45 °C
Operating Relative Humidity	5 – 95 %
Operating Elevation	0-3000 meters
Storage Temperature	-25 – 65 °C
Storage Relative Humidity	5 – 95 %
Storage Elevation	0-15000 meters
Conformance
Approvals	CE,VDE
Standard warranty	2 years repair or replace
Sustainable Offer Status
RoHS	Compliant
REACH	REACH: Con tai ns No SVHCs
Other Environmental Compliance	Chi na RoHS
