SURT6000UXI-CH

APC Smart-UPS RT | SURT6000UXI-CH

Original price was: $2,520.00.Current price is: $1,942.24.

USD

AED

JPY

EUR

KRW

GBP

RUB

INR

MNT

IRR

THB

AUD

SGD

PHP

LAK

MYR

VND

In stock

SKU： SURT6000UXI-CH Categories： UPS Systems, APC Smart-UPS SURT

Product Highlights

Description

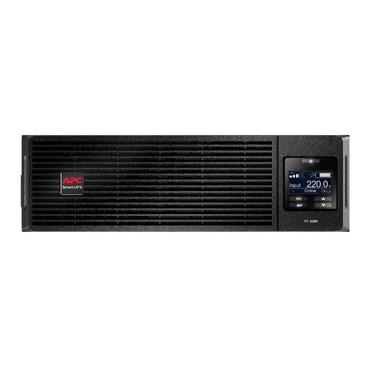

APC Smart-UPS RT | SURT6000UXI-CH

Specification

Product data sheet
Characteristics
SURT6000UXICH
APC Smart-UPS RT 6000VA 230V No Batteries
for China
Overview
Model Name	APC Smart-UPS RT 6000VA 230V No Batteries for China
Includes	CD with software , Smart UPS signalling RS-232 cable , User Manual
Standard Lead Time	Usually in Stock
Product Distribution	China
Output
Output Power Capacity	4200 Watts / 6000 VA
Max Configurable Power (Watts)	4200 Watts / 6000 VA
Nominal Output Voltage	230V
Output Voltage Note	Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion	Less than 3%
Output Frequency (sync to mains)	50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages	220, 240V
Crest Factor	3 : 1
Crest Factor	Double Conversion Online
Waveform Type	Sine wave
Output Connections	⑵ IEC 320 C19 (Battery Backup) , (4) IEC Jumpers (Battery Backup) , (8) IEC 320 C13 (Battery Backup)
Bypass	Internal Bypass (Automatic and Manual)
Input
Nominal Input Voltage	230V
Input Frequency	50/60 Hz +/- 5 Hz (auto sen si ng)
Input Connections	Hard Wire 3-wire
Input voltage range for main operations	160 – 280 V
Input voltage adjustable range for mains operation	100 – 280V
Other Input Voltages	220,240
Batteries & Runtime
Battery Type	No internal battery – uses external battery system
Battery Slots Empty	2
Communications & Management
Interface Port(s)	DB-9 RS-232 , Smart-Slot
Available SmartSlot™ In terface Quantity	1
Control panel	LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
Audible Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)	Yes
Surge Protection and Filtering
Surge energy rating	555J Joules
Filteri ng	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height	432.0 mm
Maximum Width	130.0 mm
Maximum Depth	699.0 mm
Rack Height	3 U
Net Weight	36.36 kg
Shipping Weight	45.46 kg
Shipping Height	347.0 mm
Shippi ng Width	603.0 mm
Shipping Depth	980.0 mm
Color	Black
Units per Pallet	6.0
Environmental
Operating Environment	0 – 40 °C
Operating Relative Humidity	0 – 95 (non-condensing) %
Operating Elevation	0-3000 meters
Storage Temperature	-15 – 45 °C
Storage Relative Humidity	0 – 95 (non-condensing) %
Storage Elevation	0-15000 meters
Audible noise at 1 meter from surface of unit	55.000 dB
Online Thermal Dissipation	1040.000 BTU/hr
Protection Class	IP 20
Conformance
Approvals	C-tick , CE , EN 50091-1 , EN 50091-2 , EN 55022 Class A , EN 60950 , EN 61000-3-2 , GOST , VDE
Standard warranty	2 years repair or replace , optional extended warranties available , optional on-site warranties available
Sustainable Offer Status
RoHS	Compliant
