SURT1000XLIM

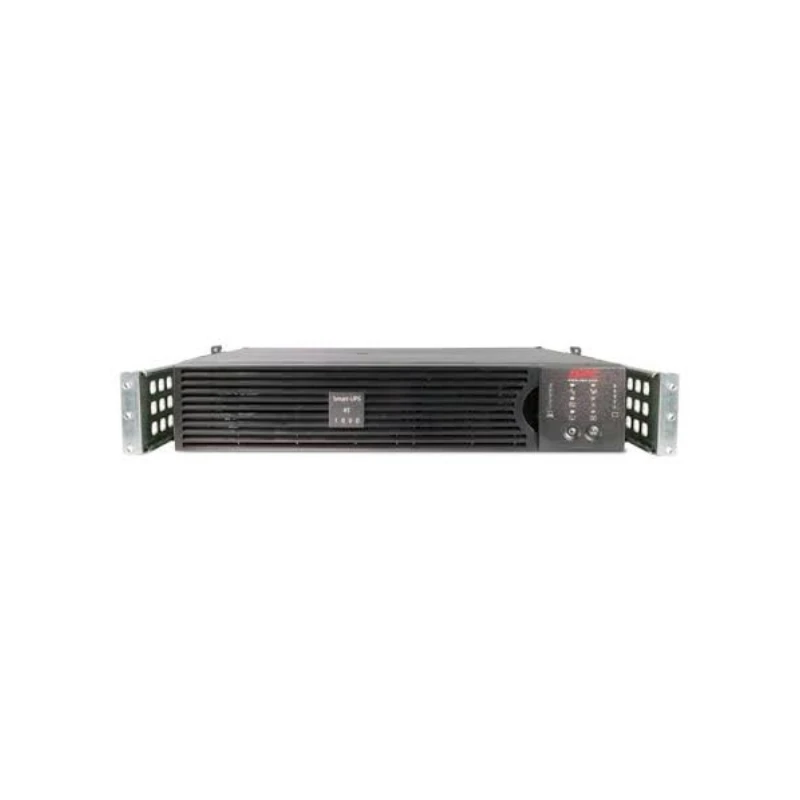

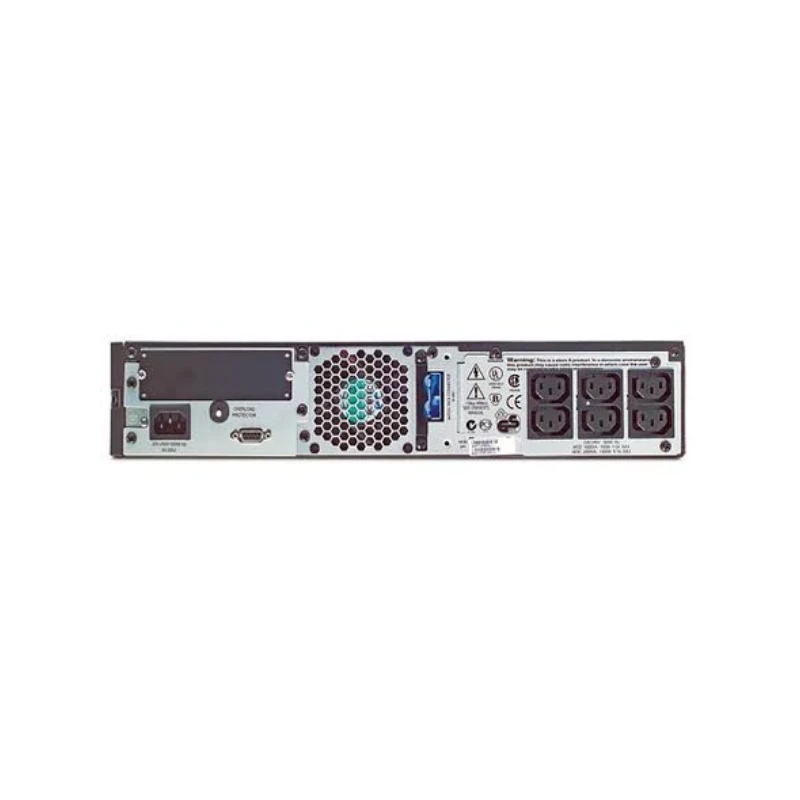

APC Smart-UPS RT 1000VA 230V - Marine（SURT1000XLIM）

Original price was: $798.00.Current price is: $691.50.

USD

AED

JPY

EUR

KRW

GBP

RUB

INR

MNT

IRR

THB

AUD

SGD

PHP

LAK

MYR

VND

In stock

SKU： SURT1000XLIM Categories： UPS Systems, Marine

Product Highlights

Description

APC Smart-UPS RT 1000VA 230V – Marine（SURT1000XLIM）

Specification

Product datasheet
Specifications	APC Smart-UPS RT 1000VA 230V -Marine
Overview
Presentation	High availability, ruggedized power protection for shipboard and other transportation applications.
Lead time	Usually in Stock
Main
Main Input Voltage	230 V
Product or component type	Filter
Other Input Voltage	220 V 240 V
Main Output Voltage	230 V
Other Output Voltage	220 V 240 V
Rated power in W	700 W
Rated power in VA	1000 VA
Input Connection Type	IEC 60320 C14
output connection type	6 IEC 60320 2 IEC Jumpers
Number of rack unit	2U
Cable length	2.5 m
Number of cables	1
Provided equipment	CD with software Relay board Smart UPS signalling RS-232 cable User manual
Batteries & Runtime
Run Time	View Run time Graph 口
Battery type	Lead-acid battery
Extended runtime	1
Number of battery filled slots	1
Number of battery free slots	0
Battery recharge time	3 h
Number of battery replacement quantity	1
Battery life	3…5 year(s)
Replacement battery	RBC31 口
Battery charger power General	109 W rated
Number of power module	700
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No
Variant option	Shipboard
UPS type	Double con versi on on li ne
Physical
Colour	Black
Height	43.2 cm
Width	8.5 cm
Depth	48.3 cm
Product weight	23 kg
Mounting location	Front
Mounting preference	Lower
Mounting mode	Rack-mou nted
Two post mountable	0
USB compatible	No
Input
Input Power Factor at Full Load	1
Input voltage limits	180…280 V
Network frequency	50/60 Hz +/- 5 Hz auto-se nsing
Output
Bypass type	Built-in bypass
Crest factor	3 : 1
Harmonic distortion	Less than 3 %
Maximum configurable power in VA	1000 VA
Maximum configurable power in W	700 W
Wave type	Si ne wave
Efficiency	88 % (full load)
Output frequency	50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains 60 Hz +/- 0.1 % for 60 Hz nominal unsynchronised 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Additional information	Con figurable for 220 : 230 or 240 nominal output voltage
Conformance
Product certifications	CE
	DNV
	KCC
Standards Environmental	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Acoustic level	55 dBA
Heat dissipation	324 Btu/h
Operating altitude	0…10000 ft
Ambient air temperature for operation	0…55 °C
Ambient air temperature for storage	-20…50 °C
Storage altitude	0.0000000000…15240.0000000000 m
IP degree of protection	IP20
Relative humidity	0…95 % non-condensing
Storage Relative Humidity	0…95 % non-condensing
Communications & Management
Emergency power off	Optio nal
Free slots	0
Preinstalled device	Dry con tact I/O smartslot card
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rate	420 J
Noise suppression	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	28.6 cm
Package 1 Width	63 cm
Package 1 Length	59.4 cm
Package 1 Weight	27.8 kg
Contractual warranty
Warranty	2 years repair or replace, optional on-site warranties available, optional extendedwarranties available
