SURT1000XLI-CH

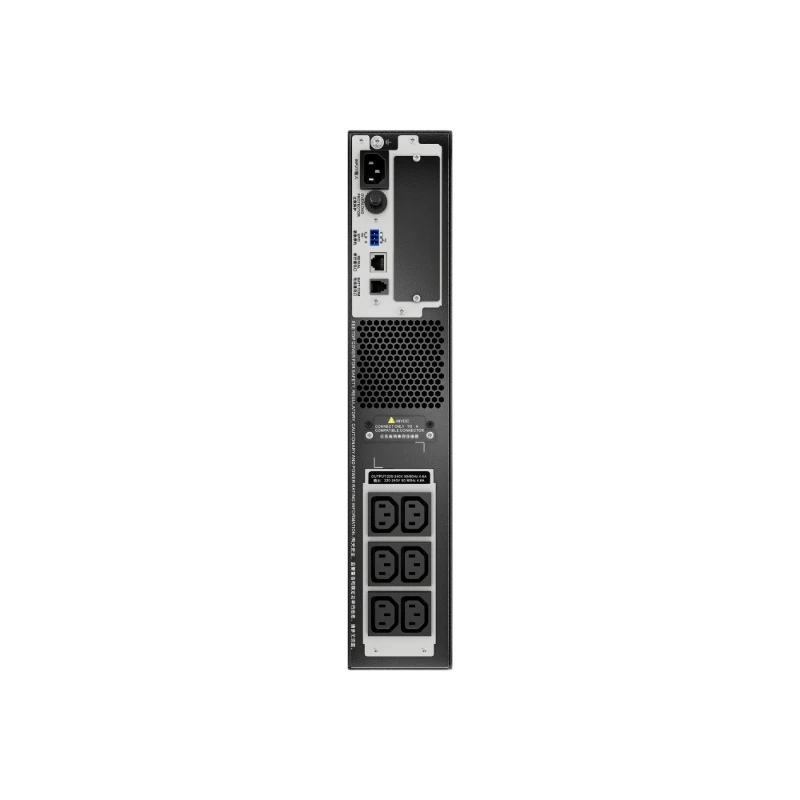

APC Smart-UPS RT 1000VA, 230V, 6x IEC 60320 & 2x IEC Jumpers outlets（SURT1000XLI-CH）

Original price was: $511.74.Current price is: $457.75.

USD

AED

JPY

EUR

KRW

GBP

RUB

INR

MNT

IRR

THB

AUD

SGD

PHP

LAK

MYR

VND

In stock

SKU： SURT1000XLI-CH Categories： UPS Systems, APC Smart-UPS SURT

Product Highlights

Description

APC Smart-UPS RT 1000VA, 230V, 6x IEC 60320 & 2x IEC Jumpers outlets（SURT1000XLI-CH）

Specification

Product datasheet
Specifications.	APC Smart-UPS RT 1000VA 230V – Marine
Overview.
Presentation.	High availability, ruggedized power protection for shipboard and other transportation applications.
.Lead time	Usually in stock
Main.
Main Input Voltage	230 V
Product or component type	Filter.
Other Input Voltage	220V 240V
Main Output Voltage.	230 V
.Other Output Voltage	220V 240V
Rated power in W	700 W.
Rated power in VA	1000 VA.
Input Connection Type	IEC 60320 C14.
Output connection type	6 IEC 60320 2 IEC Jumpers
Number of rack unit	2U.
Cable length.	2.5 m
Number of cables	1
Provided equipment	CD with software Relay board Smart UPS signalling RS-232 cable User manual
Batteries and Runtime
Run time	View Run time Graph
Battery type.	Lead-acid battery
Extended runtime	1
Number of battery-filled slots	1
Number of battery free slots	.0
Battery recharge time	3 hours
Number of battery replacement quantity	1
Battery life	3…5 year(s)
Replacement battery	RBC31 mouth
Battery charger power general	109 W rated.
Number of power module	700
Number of power module filled slots	.0
Number of power module free slots	.0
Redundant	Number
Variant option	Shipboard.
UPS type.	Double with versi on on li ne
Physical
Color	Black.
Height.	43.2 cm
Width	8.5 cm
Depth.	48.3 centimeters
Product weight	23 kg
Mounting location	Front.
Mounting preference	Lower
Mounting mode	Rack-mou nted
Two post mountable	.0
USB compatible	Number
Input.
Input Power Factor at Full Load	1
Input voltage limits	180…280 V
Network frequency	50/60Hz +/- 5Hz auto-se nsing
Output
Bypass type	Built-in bypass
Crest factor	3:1
Harmonic distortion	Less than 3%
Maximum configurable power in VA	1000 VA.
Maximum configurable power in W	700 W.
Wave type	If you wave
Efficiency.	88% (full load)
Output frequency	50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains 60 Hz +/- 0.1% for 60 Hz nominal unsynchronised 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronized
Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Conformance
Product certifications	CE.
	.DNV.
	KCC.
Environmental standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Acoustic level.	55 dBA
Heat dissipation	324 Btu/h
Operating altitude	0…10,000 ft
Ambient air temperature for operation	0…55 °C
Ambient air temperature for storage	-20…50 °C
Storage altitude	0.000000000…15240.000000000000 m
IP degree of protection	IP20.
Relative humidity	0…95% non-condensing
Storage Relative Humidity	0…95% non-condensing
Communications and Management
Emergency power off	Optional
Free slots	.0
Preinstalled device	Dry with tact I/O smartslot card
Alarm	Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Surge Protection and Filtering
Surge energy rate	420 J
Noise suppression	Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: m Eets UL 1449
Packing units
Unit Type of Package 1	PCE.
Number of Units in Package 1	1
Package 1 Height	28.6 cm
Package 1 Width	63 centimeters
Package 1 Length	59.4 cm
Package 1 Weight.	27.8 kg
Contractual warranty
Warranty.	2 years repair or replace, optional on-site warranties available, optional extended warranty avail Able
