AP4424A

APC AP4424A Automatic Transfer Switch (ATS) (AP4424A)

Original price was: $1,350.00.Current price is: $1,029.14.

USD

AED

JPY

EUR

KRW

GBP

RUB

INR

MNT

IRR

THB

AUD

SGD

PHP

LAK

MYR

VND

In stock

SKU： AP4424A Categories： Rack ATS

Product Highlights

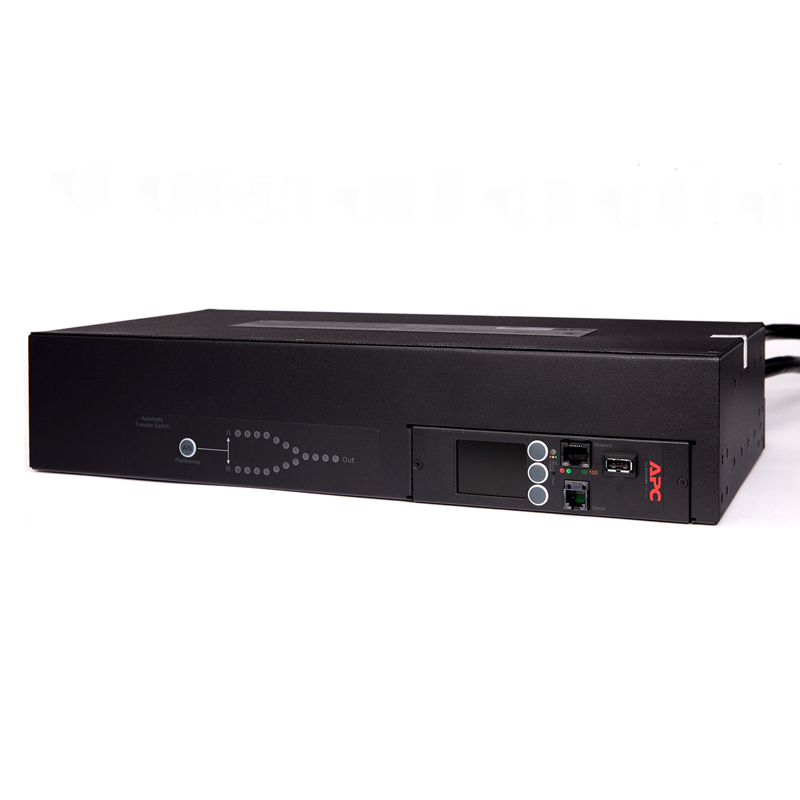

APC AP4424A Automatic Transfer Switch (ATS) (AP4424A)

AP4424

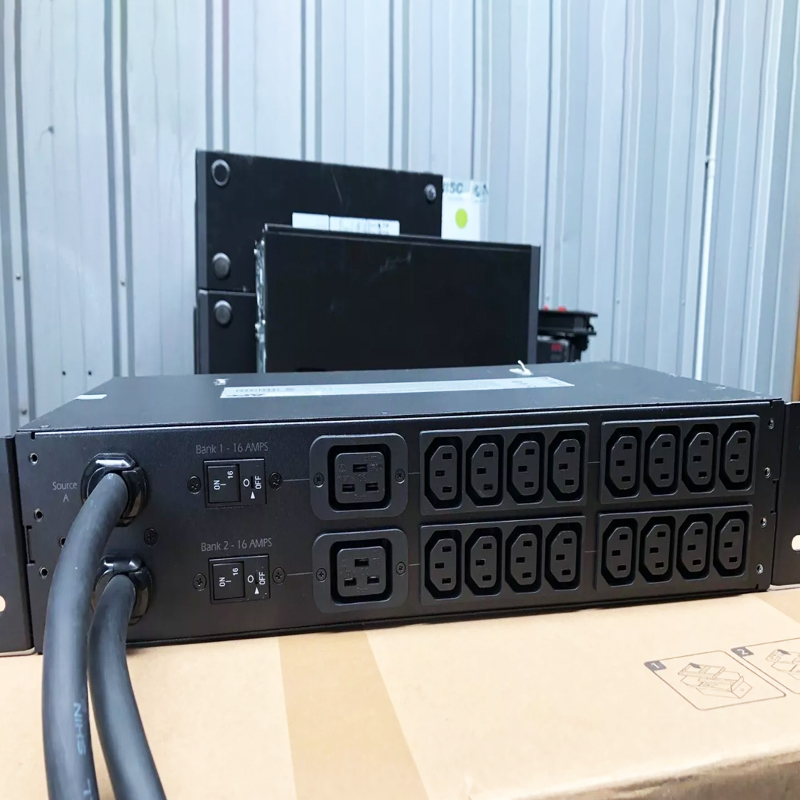

Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2)C19 out
Product data sheet
Overview
Model Name	Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2) C19 out
Includes	RS-232 configuration cable , Rack Mounting brackets , Serial configuration cable
Standard Lead Time	Usually in Stock

Output
Nominal Output Voltage	230V
Maximum Total Current Draw per Phase	32 A
Output Connections	(16) IEC 320 C13 (Battery Backup) , (2) IEC 320 C19 (Battery Backup)
Overload Protection	Yes

Input

Nominal Input Voltage	230V
Input Frequency	50/60 Hz

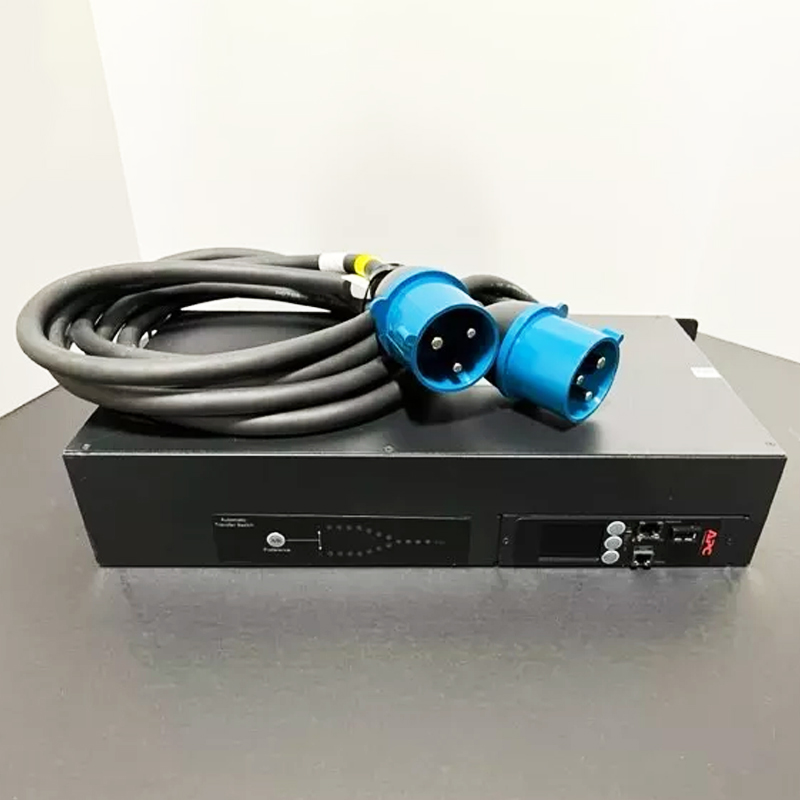

Input Connections	IEC 309 32A 2P+E
Cord Length	2.44 meters
Number of Power Cords	2
Maximum Line Current per phase	32 A
Maximum Input Current per phase	32 A
Load Capacity	7400 VA
Physical
Net Weight	6.94 kg
Maximum Height	88.0 mm
Maximum Width	432.0 mm
Maximum Depth	236.0 mm
Shipping Weight	9.43 kg
Shipping Height	210.0 mm
Shipping Width	584.0 mm
Shipping Depth	356.0 mm
Color	Black
Environmental
Operating Environment	-5 – 45 °C
Operating Relative Humidity	5 – 95 %
Operating Elevation	0-3000 meters
Storage Temperature	-25 – 65 °C
Storage Relative Humidity	5 – 95 %
Storage Elevation	0-15000 meters
Conformance
Approvals	EN 55022 Class A , FCC Part 15 Class A
Standard warranty	2 years repair or replace
Sustainable Offer Status
RoHS	Compliant
REACH	REACH: Con tai ns No SVHCs
Battery Directive	Compliant
Other Environmental Compliance	China RoHS
